Range of application

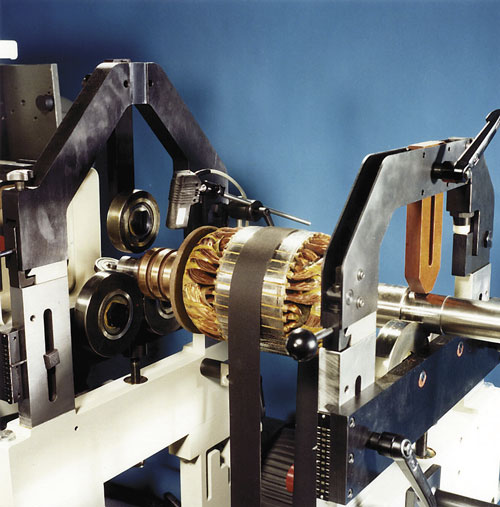

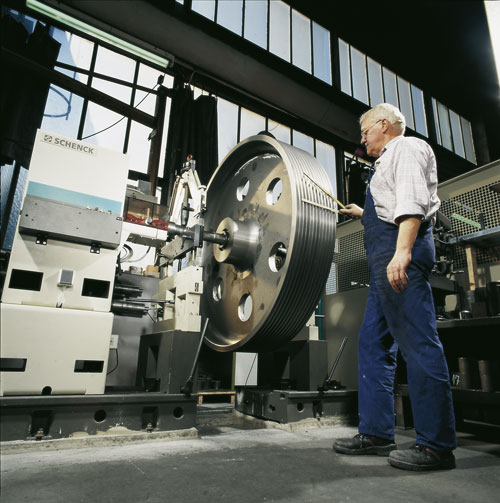

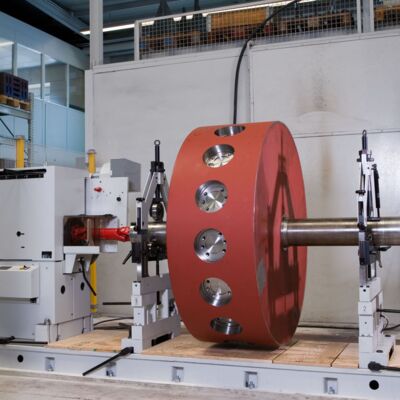

Universal balancing machines series HM are conceived for highly precise balancing of a wide spectrum of rotors. They are suitable for balancing cylindrical rotors with integral shaft journals and for balancing disc shaped rotors on balancing arbors.
Permanent calibration, ergonomic design and a logical operating sequence facilitate operation.
Their modular design principle and a wide range of accessories make the machine highly flexible.
Schenck universal balancing machines series HM are a highly efficient investment both for one-off rotors and for small batches.
Sequence of operations

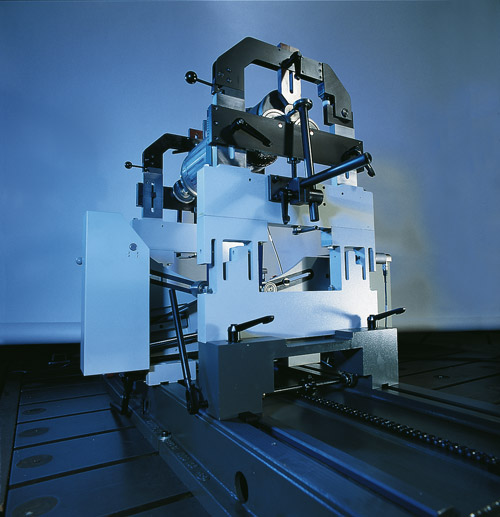

- Manually load work-piece on the bearing pedestals, close hold-down bearings and connect drive (belt drive or drive shaft)
- Close protection device and start automatic measuring sequence:
- Acceleration, determination and display of the unbalance on the measuring instrument, braking. The readout is retained on the measuring instrument even after the measuring run has ended.
- Open protection device, manually correct unbalance (if required).
- Check correction result (with measuring instrument displaying whether the tolerance has been achieved) and unload the rotor from the machine.
